SPEC 13200
COMING SOON - Southwire® CL4SS™ Class 4 Cable LS-PVC CL4P/CMP

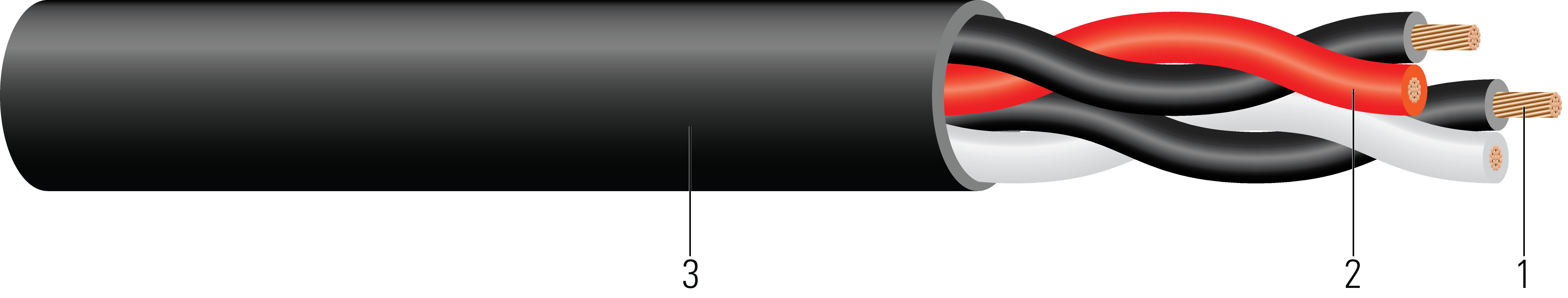

Construction:
- Conductor:Class B or C stranded soft-drawn bare copper per ASTM B3 and B8
- Insulation:Twisted pair with Premium Grade Lead Free 90°C rated flame retardant Polyvinyl Chloride (PVC). Color code: Black/White, Black/Red with alpha-numeric print 1-ONE, 2-TWO
- Jacket: Black Lead Free 90°C rated flame retardant LS Polyvinyl Chloride (PVC)
Applications and Features:
Fault Managed Power Systems (FMPS), remote powering, indoor Class 4 circuits as per National Electrical Code 2023 (NEC) article 726. Agriculture, Intelligent Buildings, and Wireless Densification. Class 4 circuits shall be supplied from a power source (transmitter) that has a voltage output of not more than 450 volts peak or DC. Cable normal operating temperature 90°C. Cold bend -30°C, FT6 Horizontal Flame & Smoke Test. Temperature Range -30°C to 90°C.
Specifications:
Table 1 – Weights and Measurements
Cond. Size | Number of Pairs | Diameter Over Conductor | Insul. Thickness | Jacket Thickness | Approx. OD | Approx. Weight | Min Bending Radius | DC Resistance @ 25°C |
---|---|---|---|---|---|---|---|---|
AWG/Kcmil | pair | inch | mil | mil | inch | lb/1000ft | inch | Ω/1000ft |
18 | 1 | 0.045 | 9 | 17 | 0.216 | 26 | 0.8 | 6.669 |
18 | 2 | 0.045 | 9 | 17 | 0.349 | 50 | 1.3 | 6.669 |
18 | 8 | 0.045 | 9 | 17 | 0.376 | 26 | 1.5 | 6.669 |
18 | 4 | 0.045 | 9 | 17 | 0.417 | 88 | 1.6 | 6.669 |
16 | 1 | 0.056 | 11 | 17 | 0.234 | 39 | 0.9 | 4.181 |
16 | 8 | 0.056 | 11 | 17 | 0.376 | 113 | 1.5 | 4.181 |
16 | 2 | 0.056 | 11 | 17 | 0.403 | 70 | 1.6 | 4.181 |
16 | 4 | 0.056 | 11 | 17 | 0.481 | 125 | 1.9 | 4.181 |
14 | 1 | 0.070 | 11 | 17 | 0.256 | 54 | 1.0 | 2.631 |
14 | 2 | 0.070 | 11 | 17 | 0.467 | 112 | 1.8 | 2.631 |
14 | 4 | 0.070 | 11 | 17 | 0.543 | 183 | 2.1 | 2.631 |
14 | 8 | 0.070 | 11 | 17 | 0.780 | 370 | 3.1 | 2.631 |
All dimensions are nominal and subject to normal manufacturing tolerances
◊ Cable marked with this symbol is a standard stock item
Table 2 – Weights and Measurements (Metric)
Cond. Size | Number of Pairs | Diameter Over Conductor | Insul. Thickness | Jacket Thickness | Approx. OD | Approx. Weight | Min Bending Radius | DC Resistance @ 25°C |
---|---|---|---|---|---|---|---|---|
AWG/Kcmil | pair | inch | mm | mm | mm | lb/km | mm | Ω/km |
18 | 1 | 0.045 | 0.23 | 0.43 | 5.49 | 39 | 20.32 | 21.88 |
18 | 2 | 0.045 | 0.23 | 0.43 | 8.86 | 74 | 33.02 | 21.88 |
18 | 8 | 0.045 | 0.23 | 0.43 | 9.55 | 39 | 38.10 | 21.88 |
18 | 4 | 0.045 | 0.23 | 0.43 | 10.59 | 131 | 40.64 | 21.88 |
16 | 1 | 0.056 | 0.28 | 0.43 | 5.94 | 58 | 22.86 | 13.72 |
16 | 8 | 0.056 | 0.28 | 0.43 | 9.55 | 168 | 38.10 | 13.72 |
16 | 2 | 0.056 | 0.28 | 0.43 | 10.24 | 104 | 40.64 | 13.72 |
16 | 4 | 0.056 | 0.28 | 0.43 | 12.22 | 186 | 48.26 | 13.72 |
14 | 1 | 0.070 | 0.28 | 0.43 | 6.50 | 80 | 25.40 | 8.63 |
14 | 2 | 0.070 | 0.28 | 0.43 | 11.86 | 167 | 45.72 | 8.63 |
14 | 4 | 0.070 | 0.28 | 0.43 | 13.79 | 272 | 53.34 | 8.63 |
14 | 8 | 0.070 | 0.28 | 0.43 | 19.81 | 551 | 78.74 | 8.63 |
Typical Electrical Specifications for Each Pair
Size | Capacitance | Capacitive Reactance |
---|---|---|
AWG | pF/ft | Mega Ohms*1000ft |
18 | <30 | TBD |
16 | <30 | TBD |
14 | <30 | TBD |
Revision: 1.000.055
Updated On: Dec. 11, 2023, 9:29 p.m. UTC
